Experience sound like never before! Our exclusive sound system is specially designed for BMW G-Series models with RAM (Radio Amplifier Module). It seamlessly integrates with your factory audio system, unlocking the full potential of your BMW with crystal-clear highs, deep bass, and an immersive soundstage.
Precisely tuned for the factory RAM system, our solution delivers maximum performance without complex modifications. Plug & Play – for an effortless upgrade that takes your driving experience to the next level!
The High-end tweeters let you hear every note with stunning clarity and fast dynamics, while the 10 cm optional center speaker (DP2-40C-BC) and the included 12 cm mid-range door speakers produce a wide frequency range that uncovers the rich details of every audio track – delivering your favorite songs with powerful mid-bass and amazing texture and accuracy.
The also included underseat subwoofers use the original space of the OEM subwoofers under the seats of your BMW and complement the Alpine Premium Sound System with powerful bass.
The 12-channel Sound Audio Processor is pre-programmed to perfectly match the sound characteristics of your BMW, to ensure perfect sound quality.

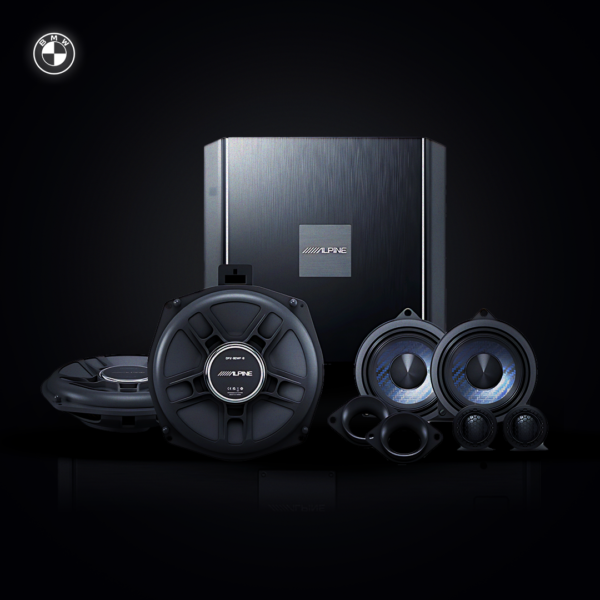

SPC-2045ABMW-HR includes:
PXE-X120-10DP – 12-channel Sound Audio Processor, with BMW specific Harness
Input signals: 12-Channel high level, 2-channel RCA audio, high-definition Bluetooth, optical/coaxial
Output signals: 10-Channel high level, 2-channel RCA audio
RMS Power Ratings CH 1-4 into 4 Ohms: 25W RMS x 4 (14.4V at 10% THD)
RMS Power Ratings CH 5-8 into 4 Ohms: 50W RMS x 4 (14.4V at 10% THD)
RMS Power Ratings CH 9-10 into 4 Ohms: 100W RMS x 2 (14.4V at 10% THD)
Power Requirement: 12 V
Measurements: 250mm x 234mm x 50mm
Pre-programmed BMW G-Series sound settings with EQ and digital time correction
Adjustments for LHD or RHD vehicles
DP2-80WF-B – 20 cm (8″) under-seat Subwoofers
Frequency response: 35Hz-500Hz
Rate Power: 100W RMS
Peak Power: 200W
Magnet type : Neodymium
Cone type : Bullet proof carbon
Woofer size : 20 cm (8″)
DP2-45C-B – 12 cm (4.5″) Component 2-Way Door Speakers
Frequency response: 90Hz-20KHz
Rate Power: 50W RMS
Peak Power: 100W
H.A.M.R surround
Plug and Play for BMW car
Cone Material: Woven Carbon Fibre Hybrid
Magnet Material: Neodymium
Surround: H.A.M.R Multi-Roll
Terminals: Gold Plated
Tweeters Dome Material: Tetoron Soft-Dome
Tweeters Magnet Material: Neodymium
Woofer size : 12 cm (4.5″)
Tweeter size: 2.5 cm (1″)
DP2-40C-BC – Optional 10 cm (4″) Component 2-Way Center Speaker
Frequency response: 90Hz-20KHz
Rate Power: 50W RMS
Peak Power: 100W
H.A.M.R surround
Plug and Play for BMW car
Cone Material: Woven Carbon Fibre Hybrid
Magnet Material: Neodymium
Surround: H.A.M.R Multi-Roll
Terminals: Gold Plated
Tweeters Dome Material: Tetoron Soft-Dome
Tweeters Magnet Material: Neodymium
Woofer size : 10 cm (4″)
Tweeter size: 2.5 cm (1″)
Compatible Cars
Maker Serie Model Model year
BMW 3-series G20 11/2018 – 08/2024
BMW 3-series G21 07/2019 – 07/2024
BMW 3-series G80 (M3 Limosine) 11/2020 – 07/2024
BMW 3-series G81 (M3 Touring) 11/2022 – 07/2024
BMW 4-series G22 07/2020 – 03/2024
BMW 4-series G23 11/2020 – 03/2024
BMW 4-series G26 07/2021 – 07/2024
BMW 4-series G82 (M4 Coupe) 11/2020 – 07/2024
BMW 4-series G83 (M4 Cabrio) 07/2021 – 03/2024
Note:
The wiring harness fits vehicles that are factory-equipped with the ‘Hifi’ system, code SA676A.
If your car is not listed, please ask your local specialist dealer.
