High-performance of DSP, fast for running speed, the transmit and receive clock is up to 50MHz. Also, Highly configured audio CODEC chip PCM3168, with 192kHz.
Frequency Response
- 20Hz~20kHz
Inputs
- 6 high-level signal inputs
- 6-channel RCA signal
- Optical fiber/ Coaxial digital signal input
- Bluetooth signal input
Outputs

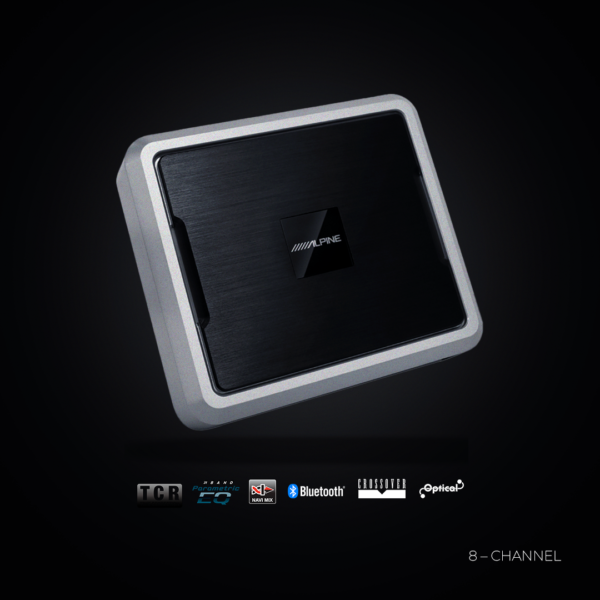

- 8 x 25W (Rated power)
- 12-channel RCA output
Sound & Tuning
- 2.0 multichannel surround
- 31 Bands parametric EQ
- Hi-pass / Low-pass / Bandpass Crossover
- Time delay up to 20 ms per channel
- Input/output frequency summing
- Music & navigation sound mixing
Dimension
- 210 x 190 x 45 mm
